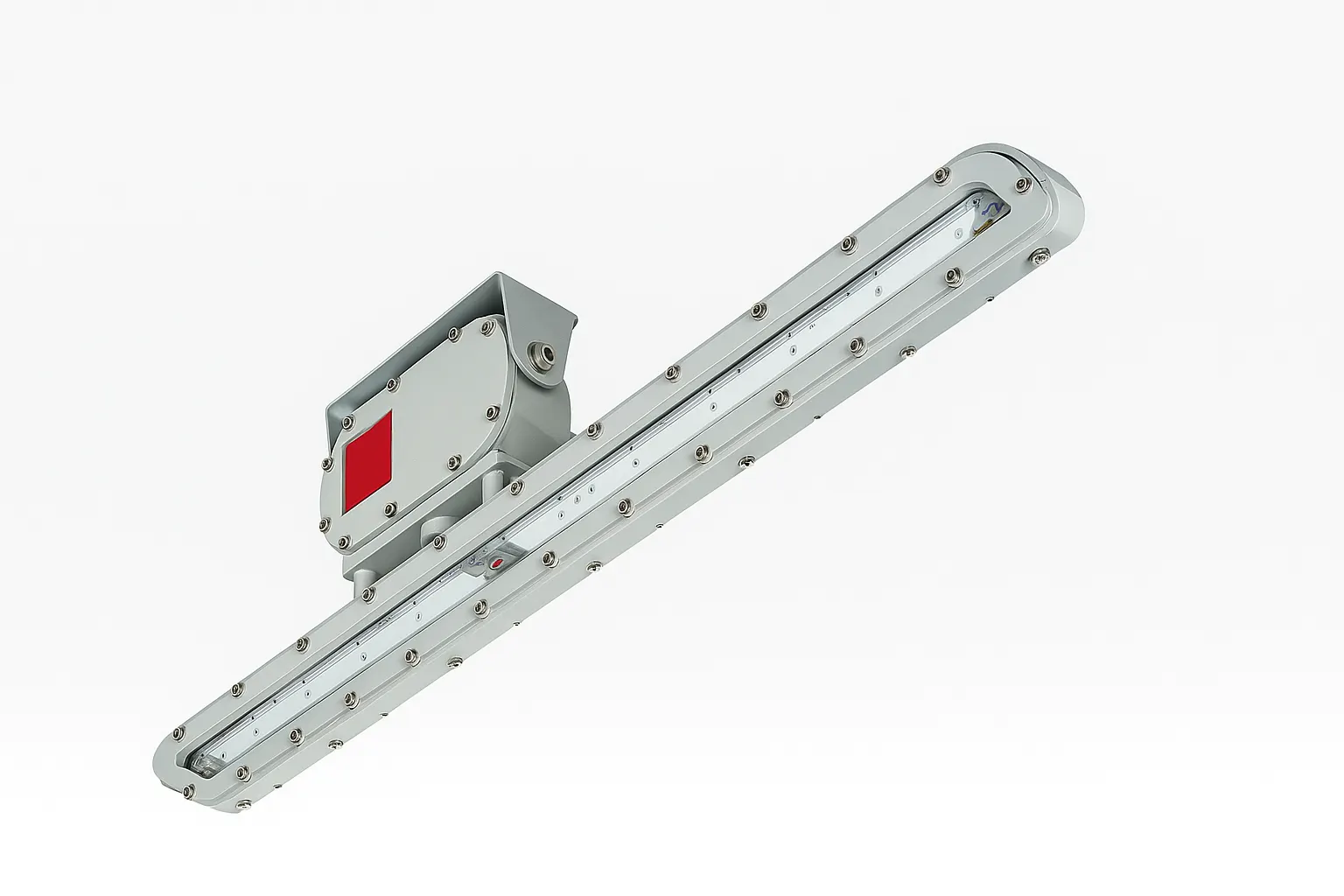

XMON Explosion-Proof Linear LED
Quick cage-clamp wiring and 90° adjustable bracket for Class I Div 1 walkways.
Harsh-Environment Area LightsHazardous / Explosion-Proof Area LightsLinear Luminaires (Hazardous & Explosion-Proof)Sanitary / Food-Processing Linear LuminairesEmergency, Exit & Signage Luminaires (Explosion-Proof)
- SKU
- XMON
- Manufacturer
- Ongini Lighting
- Warranty
- 7 Years
Key features
- Low Profile and Lightweight Design: A compact design for easy integration into tight spaces.
- Convenient Wiring Access: Screwcap cover with a toolless cage clamp terminal block for easy installation and maintenance.
- Emergency Battery Backup: Self-contained emergency lighting with no need for an additional junction box.
- Heavy-duty Safety Cable Attachments: Equipped with 7/16″ thick die-cast attachment points for secure and reliable safety cable connections.
- Field-Replaceable LED Components: Quick disconnects for easy replacement of LED circuit boards and drivers.
- Adjustable Mounting Bracket: Includes a bracket that offers a 90-degree range of motion and 13 locking positions (sold separately).
- 10kV Surge Protection: Provides supplemental surge protection to safeguard against electrical spikes.
- Centralized Safety Cable Attachments: Positioned to enhance safety and reduce the range of motion.
- Mounting Flexibility: Capable of feed-through and pendant mounting
- Lens Options: Offers a diffused lens option for more even light distribution.
- Dimming Capability: Optional 0-10V dimming (range 10-100%) available (Note: Not compatible with EXML models or when the emergency backup option is selected).
Description
XMON offers screw-cap access to a toolless cage-clamp block, 7/16-in safety points and optional adjustable bracket with 13 lock positions. Diffused lens and EM battery options complete the specs. The XMON LED Linear Light is designed for explosion-proof applications in hazardous environments. This fixture combines a low-profile, lightweight design with robust safety features, such as field-replaceable LED components, emergency battery backup, and surge protection, making it a reliable lighting solution for challenging industrial locations.
Specifications
- Body
- Constructed from A360 Aluminum (with less than 0.4% copper content) and finished with a baked-on gray epoxy coating for durability.
- Gaskets
- One-piece neoprene gaskets for a secure, weather-tight seal.
- Lens
- Tempered glass for enhanced durability and impact resistance.
- Hardware
- Stainless steel components for corrosion resistance and strength.
