Product detail

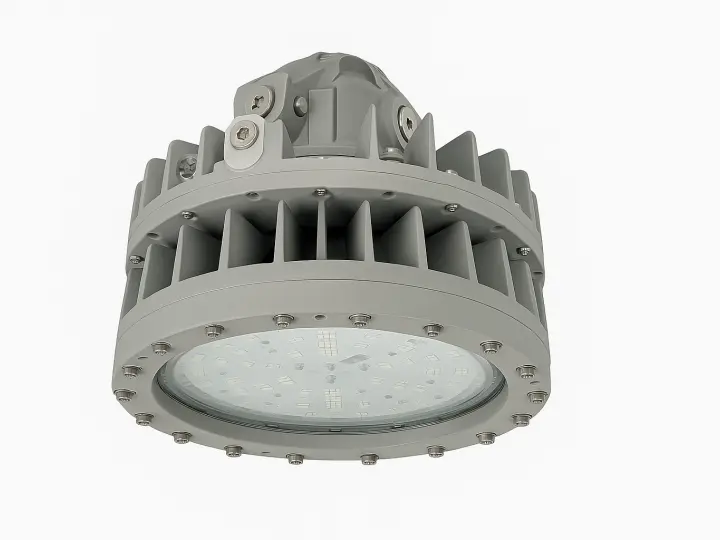

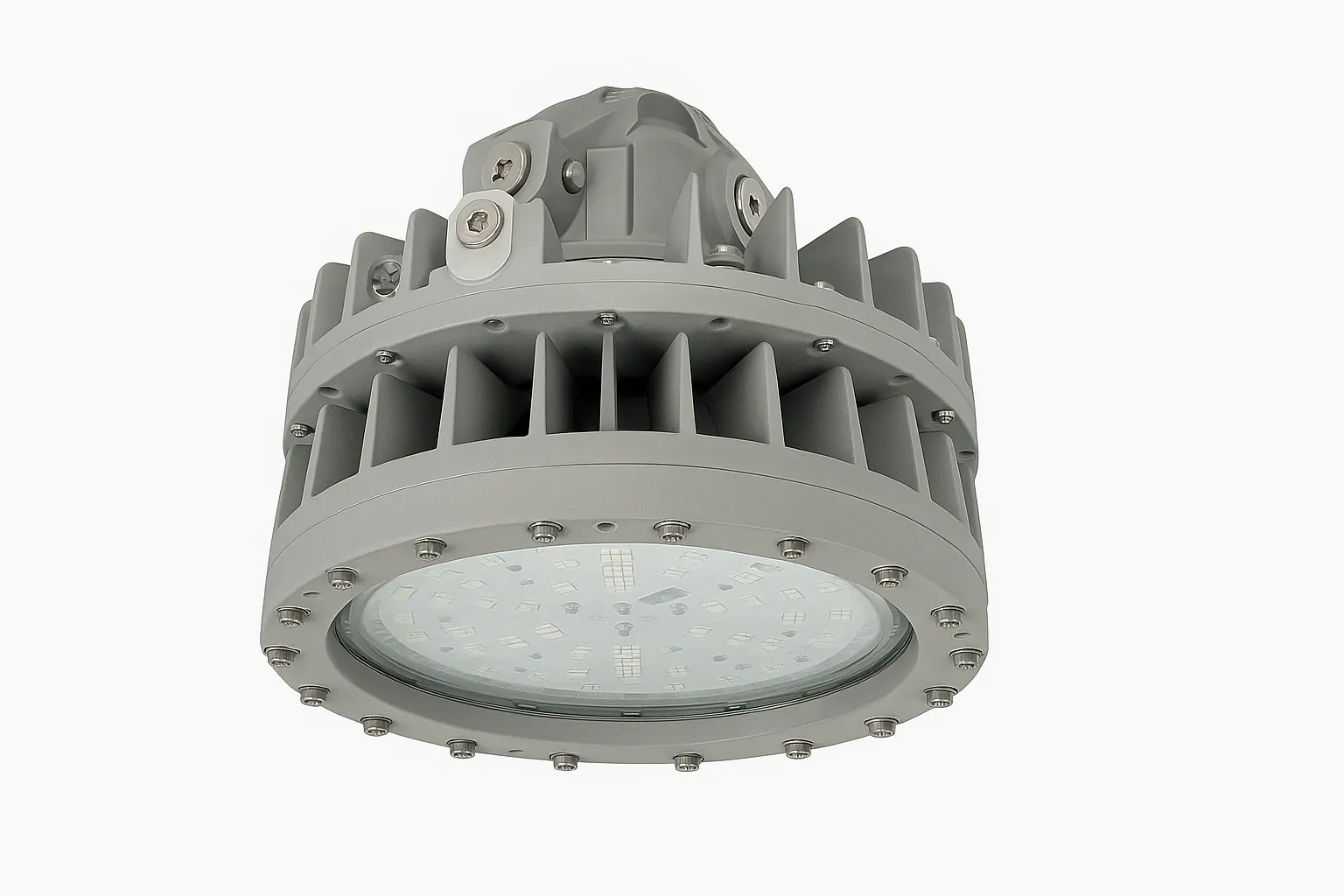

XHBON Low-Profile Explosion-Proof LED

Sub-7-inch Class I Div 1 fixture with interchangeable optics and optional emergency battery.

Home
Products
XHBON Low-Profile Explosion-Proof LED

Harsh-Environment Area LightsHazardous / Explosion-Proof Area LightsLinear Luminaires (Hazardous & Explosion-Proof)Sanitary / Food-Processing Linear LuminairesEmergency, Exit & Signage Luminaires (Explosion-Proof)

SKU: XHBON
Manufacturer: Ongini Lighting
Warranty: 7 Years

Key features

Low Profile Design: Compact housing, with a height of less than 7 inches.
Flexible Optics: Offers interchangeable optics with multiple distribution options, including Type I, III, V, medium, wide, narrow, and very narrow for customizable lighting coverage.
Spring Pressure Terminal Block: Equipped with a spring pressure connection terminal block for secure wiring.
Field-Replaceable Components: LED circuit boards and drivers can be replaced with ease using quick disconnects.
Optional Trunnion Mount: Includes an optional trunnion mount with five locking positions in 15-degree increments.
Safety Cable Attachments: Features two safety cable attachment points, with optional eye bolts for enhanced safety.
Certified for Hydrogen Atmospheres: Meets standards for Group B hydrogen atmospheres.
UL 924 Emergency Lighting: Integral UL 924 Emergency Lighting battery backup option with switching capability for reliable performance during power interruptions.
Compatibility with SXPON/SXPON HID Mounts: Mates directly with SXPON/SXPON HID mounts for simplified installation.
Dimming Capabilities: 0-10V dimming, with a range of 10% to 100%.
Surge Protection: Includes 10kV surge protection to guard against electrical spikes.

Request a quote Ask a technical question

Description

XHBON delivers interchangeable Type I/III/V or narrow optics from a low-profile body. Dual safety-cable points and optional UL 924 emergency battery ensure secure, code-compliant egress lighting—even in hydrogen atmospheres. Rated to 65 °C with 10 kV surge and 7-year warranty.

Specifications

Body: Constructed from A360 aluminum with less than 0.4% copper content and finished with a durable baked-on gray epoxy coating.
Gaskets: One-piece silicone gaskets for an airtight and watertight seal.
Lens: Made from tempered glass for increased strength and impact resistance.
Hardware: All components are made from stainless steel for superior durability and resistance to corrosion.
