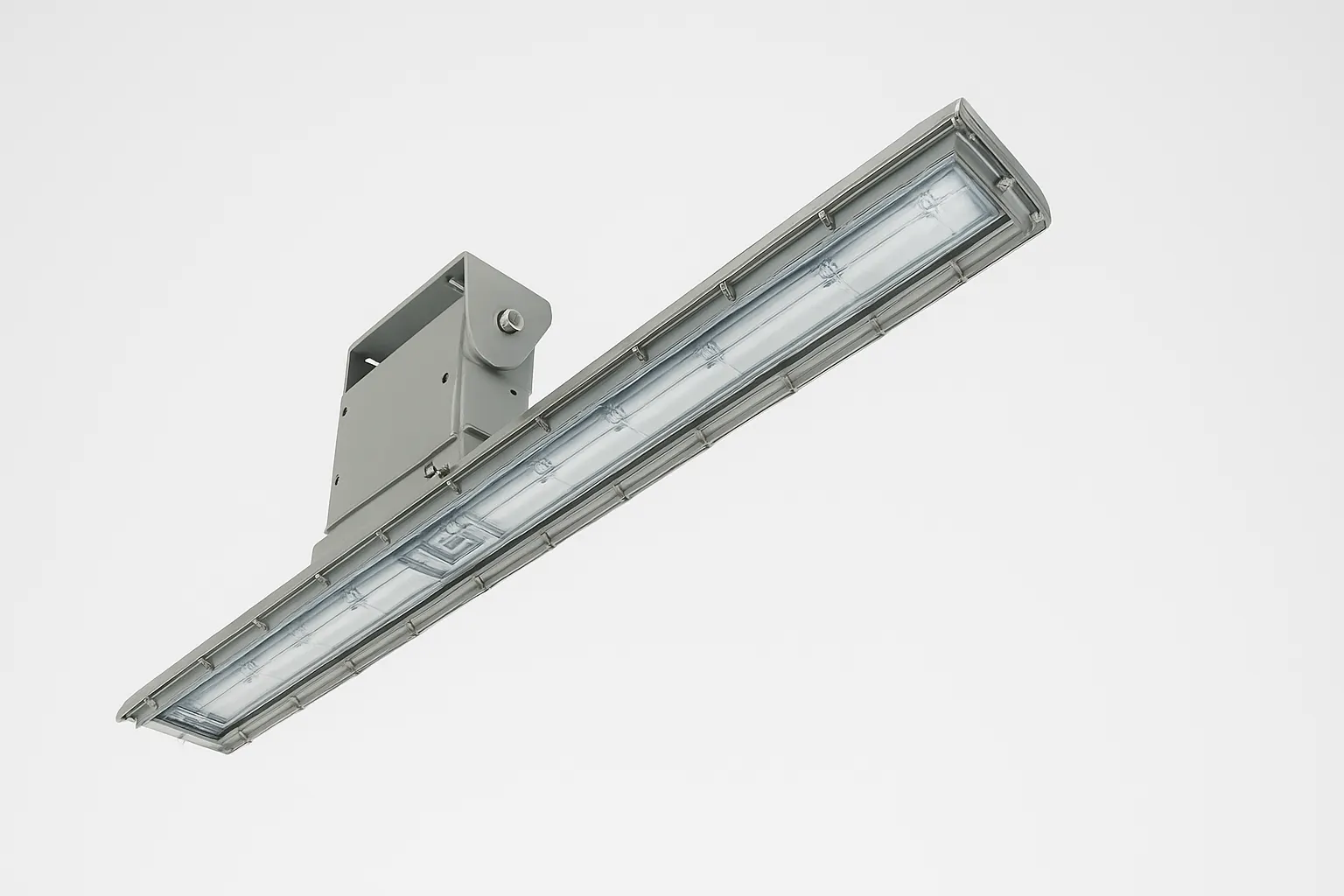

MHDON2 Heavy-Duty Hazardous LED Linear
3/16-in fiberglass housing and 1/8-in lens for extreme Class I Div 2 lines.
Harsh-Environment Area LightsHazardous / Explosion-Proof Area LightsLinear Luminaires (Hazardous & Explosion-Proof)Sanitary / Food-Processing Linear Luminaires
- SKU
- MHDON2
- Manufacturer
- Ongini Lighting
- Warranty
- 7 Years
Key features
- Compact and lightweight: The low-profile design allows for space-saving installation.
- Heavy-duty construction: Features 3/8″-thick die-cast attachment points for safety cables.
- Tool-free wiring: Equipped with a cage clamp terminal block for easy installation.
- Secure junction box cover: Fastened by nylon-coated stainless-steel cable for added safety.
- Serviceable components: Field-replaceable LED circuit boards and drivers with quick disconnects for easy maintenance.
- Adjustable mounting: Includes an adjustable mounting bracket with 60° range of motion and nine locking positions (mounting bracket sold separately)
- Impact-resistant lens: Choose between clear or diffused polycarbonate lens for added durability.
- Includes standard 10kV surge protection to safeguard the fixture.
- Features central safety cable attachment points, ensuring stability and reducing range-of-motion risks.
- Feed-through is capable for flexible wiring configurations.
- Optional end brackets for chain-mount applications.
- Equipped with emergency battery backup for reliable operation during power. outages.
Description
MHDON2 pairs a thick fiberglass body with reinforced hubs and impact lens, plus cage-clamp wiring and cam-latches for tool-free access. Rated Class I Div 2, IP66, NEMA 4X and backed by a 7-year warranty. Product Type: LED Lighting Fixture. Certifications: BAA Compliant, BABA Compliant, Class I Division II, Class II Division II, Class III, IEC/ATEX. The MHLON LED Linear Light provides efficient, low-profile illumination for hazardous-rated locations. Designed with a lightweight die-cast aluminum body and impact-resistant lens, the MHLON LED fixture meets the demands of tough industrial environments.
Specifications
- Body
- Constructed from 6061T5 aluminum (less than 0.4% copper content) with a baked-on gray epoxy finish.
- Driver Housing
- Made from A360 aluminum (less than 0.4% copper content) with baked-on gray epoxy finish.
- Gaskets
- One-piece neoprene for a tight, secure seal.
- End Brackets
- Made from stainless steel for durability in demanding conditions.
- Lens
- Polycarbonate for superior impact resistance
- Hardware
- All components are made from stainless steel to ensure durability
