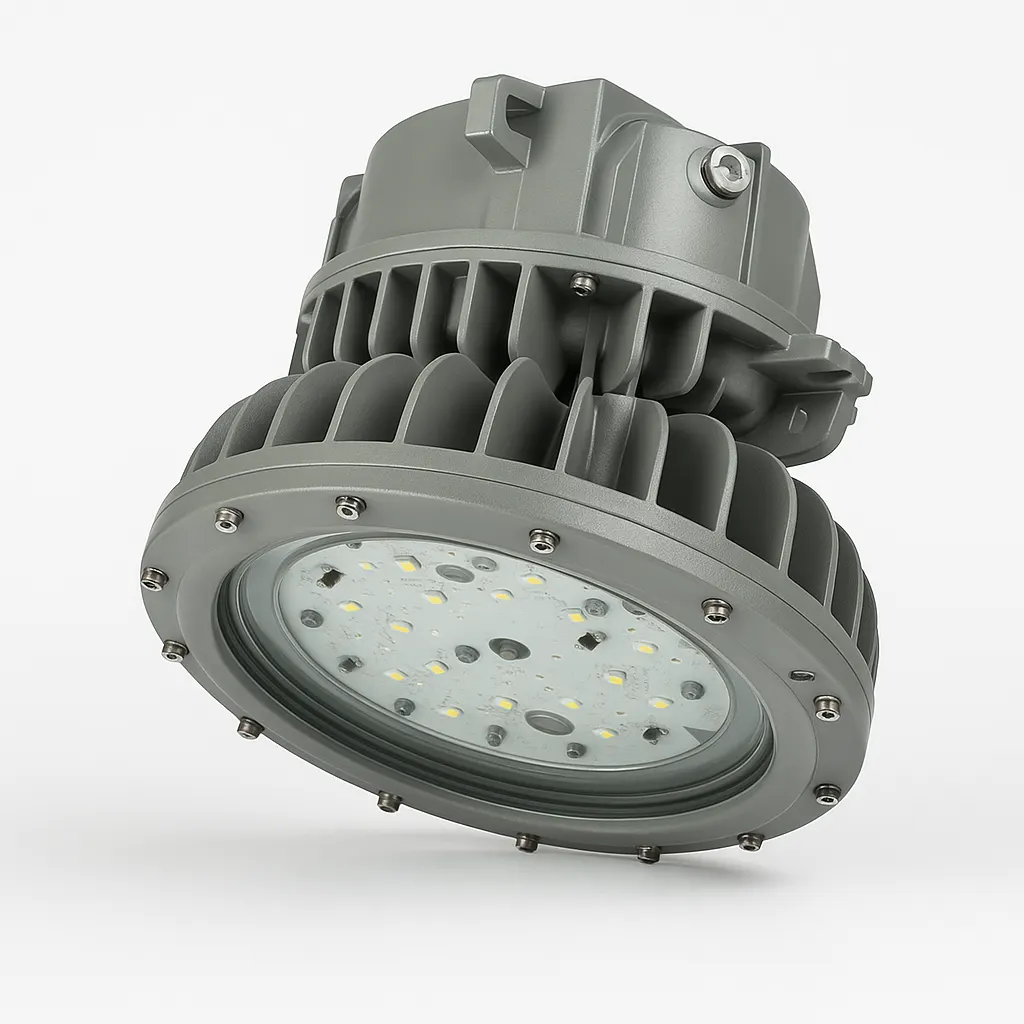

HZALON Hazardous-Rated LED Area Light
Low-profile (<5 in) Class I Div 2 fixture with selectable optics and 7-year warranty.
Harsh-Environment Area LightsHazardous / Explosion-Proof Area Lights
- SKU
- HZALON
- Manufacturer
- Ongini Lighting
- Warranty
- 7 Years
Key features
- Emergency backup system: Optional switching capability with a field-replaceable battery.
- Available in multiple mounting configurations: Choose from pendant, ceiling, wall, trunnion, and stanchion options
- Compatibility with competitor mounts: Directly mates with certain competing fixtures for seamless integration.
- Dimming functionality: Adjust light levels as needed for different environments.
- Optional Type 316 stainless steel guard for added protection.
- Built-in 10kV surge protection to guard against electrical surges.
- Backed by a 7-year warranty, ensuring reliability and long-term performance.
Description
Standing under five inches tall, HZALON delivers Type I, III, V or wide optics for Class I Div 2 and Class II areas. A hinged mount and quick-disconnect LED boards speed service, while optional emergency battery, 316-SS guard and 10 kV surge suppression maximise uptime to +70 °C.
Specifications
- Low-profile form
- Standing at under five inches in height, it fits seamlessly in tight spaces.
- Customizable optics:
- Select from Type I, III, V, and wide distribution options for desired illumination.
- Pressure
- Spring pressure terminal block which provides a secure, easy-to-connect wiring solution.
- Replaceable components
- Field-replaceable LED circuit boards and drivers with quick disconnects for simple service and maintenance.
- Hinged mounting design
- Facilitates effortless access to internal parts for maintenance.
- Adjustable trunnion mount
- Features locking positions at 15-degree increments for precise aiming.
- Safety assurance
- Includes two safety cable attachment points for secure installation.
- Emergency backup system
- Optional switching capability with a field-replaceable battery.
- Available in multiple mounting configurations
- Choose from pendant, ceiling, wall, trunnion, and stanchion options.
- Compatibility with competitor mounts
- Directly mates with certain competing fixtures for seamless integration.
- Dimming functionality
- Adjust light levels as needed for different environments.
